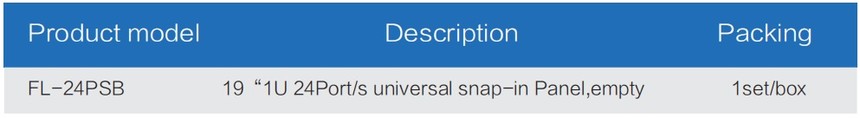

FL-24PSB 24 ports horizontal blank Patch Panel
Product advantage -The 24 port shielded snap in horizontal hollow panel distribution frame adopts 19 "1U rack design, and the frame adopts 1.5mm thick SPCC cold-rolled steel plate and is treated with paint baking and rust prevention. -The horizontal blank panel distribution frame is covered with UL-94V-0 flame-resistant ABS plastic panel, and a large sign window is designed to make the distribution frame look more textured. -The back of the horizontal empty board distribution frame is made of conductive metal, and the grounding wire joint lock is provided, which is compatible with the installation of shielded and unshielded modules. -The 24 port shielded horizontal blank Patch Panel can install a full range of Fastlinkcabsys modules, and each port can be disassembled and assembled separately, making installation and maintenance more convenient. -The back of the horizontal empty board distribution frame contains a modular support bar to guide the incoming line. -The large transparent marking window has an effective marking height of more than 9mm, which is suitable for the width (height) of most special marking strips sold in the market, making the marking text clearer and the marking procedure simpler. -Comply with ROHS 2011 / 65 / EU environmental protection specifications and standards. Product characteristics Metal material of frame and support: SPCC, 1.5mm Front panel plastic material: ABS (in accordance with UL-94V-0) Standard color: Black Operating temperature: - 40 ℃ to + 75 ℃ Meet the standards EIA-310-D Order information
Installation module rendering

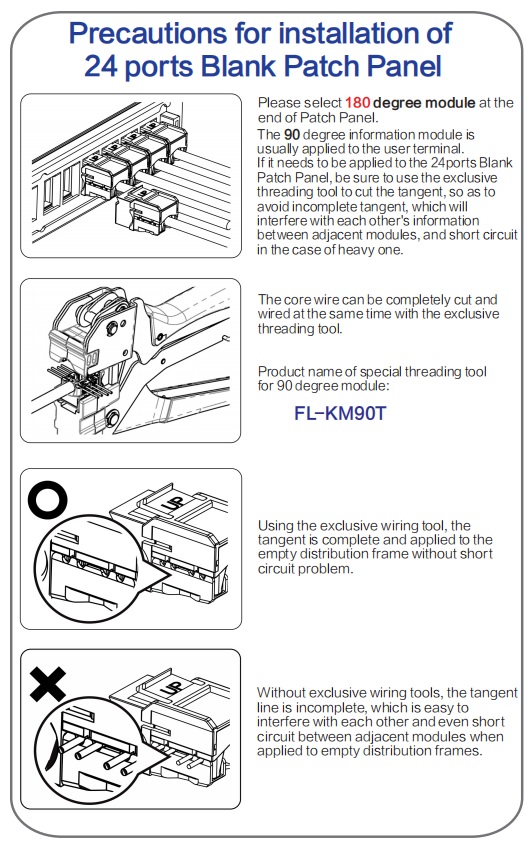

Precautions for installation
|
