Product advantage

-19 "rack type 1U design, conforming to ANSI / EIA-RS310-C / D standard.

-The bottom plate is made of SPCC cold-rolled steel plate and treated with baking paint and rust prevention.

-Five thread management ring buckles are designed, which can truly hoop the cable in the ring buckle to

 avoid the cable from being scattered outside the groove.

-Easy-patch series design provides good hand plugging space.

-The depth of the whole wire rack is 90mm, which provides the storage of high-capacity jumpers and

 makes the bending radius of jumpers meet the installation requirements.

-The cable management ring buckle and front panel cover are made of ABS. The panel cover can store the

 cable in the cover plate to make the appearance neat and beautiful.

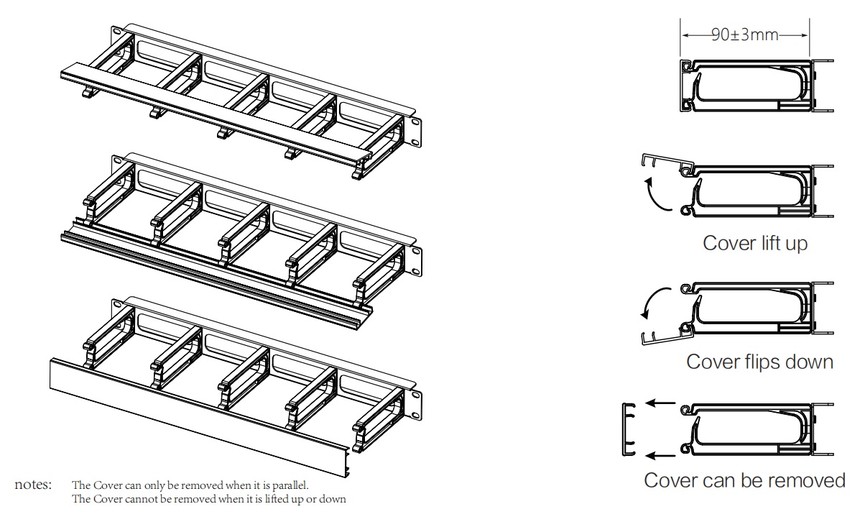

-The front panel cover can be lifted up, down or the whole panel cover can be removed.

-Comply with ROHS 2011 / 65 / EU environmental directive.

Product characteristics

ABS material

Standard color: Black

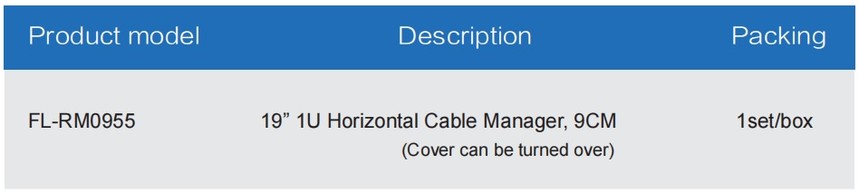

Order information

P2.10.02_9cm Extended horizontal Cable Manager.pdf

P2.10.02_9cm扩展型水平理线架.pdf
