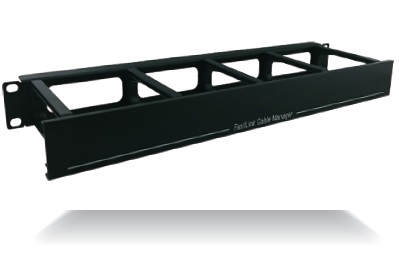

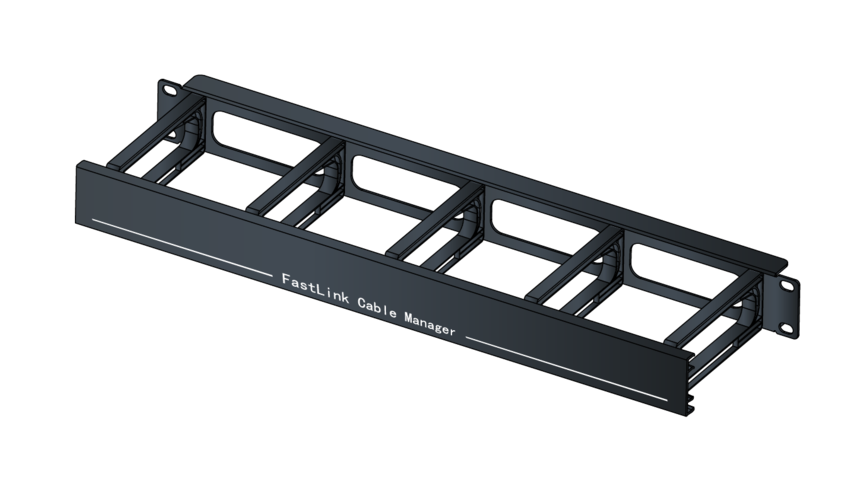

Product advantage

-19 "rack type 1U design, conforming to ANSI / EIA-RS310-C / D standard.

-The bottom plate is made of SPCC cold-rolled steel plate and treated with baking paint and rust prevention.

-Five thread management ring buckles are designed, which can truly hoop the cable in the ring buckle to

 avoid the cable from being scattered outside the groove.

-Easy-patch series design provides good hand plugging space.

-The depth of the whole wire rack is 70mm, which provides the storage of high-capacity jumpers and makes

 the bending radius of jumpers meet the installation requirements.

-The cable management ring buckle and front panel cover are made of ABS. The panel cover can store the

 cable in the cover plate to make the appearance neat and beautiful.

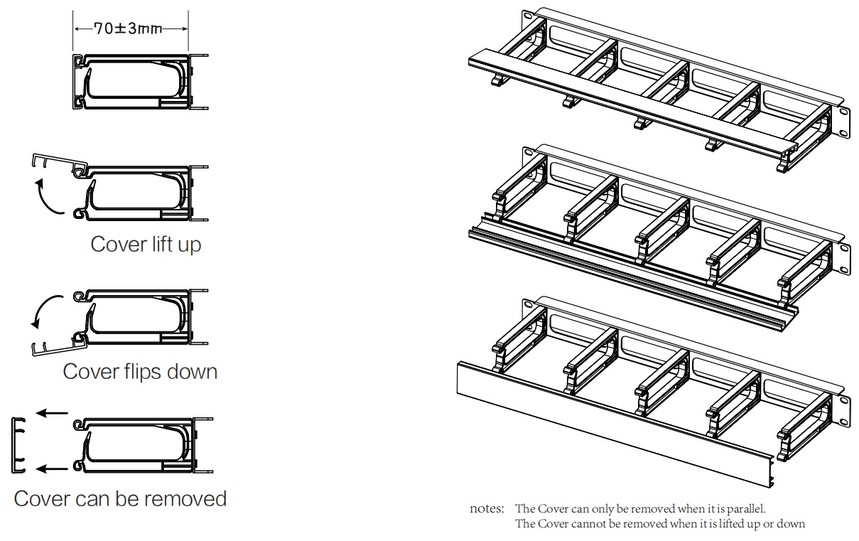

-The front panel cover can be lifted up, down or the whole panel cover can be removed.

-Comply with ROHS 2011 / 65 / EU environmental directive.

Product characteristics

ABS material

Standard color: Black

notes：

 The outer diameter of category 6 and above

jumpers is relatively thick. If 24 jumpers are fully

equipped, please route them on the left and

right sides.

(24 one-sided routing lines are pressed too tightly, which

is not conducive to ventilation and heat dissipation, and

even the cover plate may not be tightly covered)

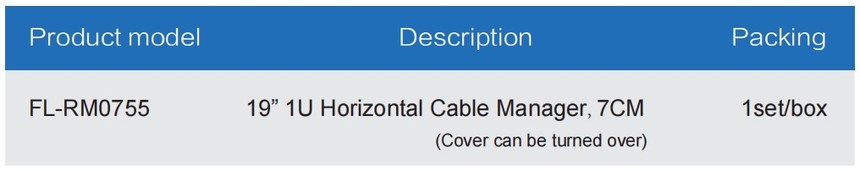

Order information
