Product advantage

- Comply with EIA/TIA 455 and EIA/TIA 604 standards.

- Applicable to 62.5/125μm、50/125μM and 9/125μM full range of fiber termination applications.

- Precision ceramic material, low loss, suitable for LAN/WAN and CATV/CCTV, etc.

- Support 10/100Base F, 1000Base SX/LX/LH, FDDI, ATM and other network applications.

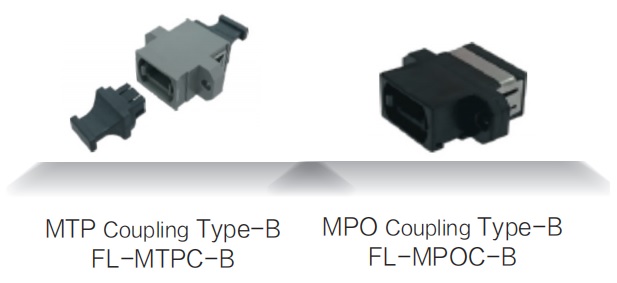

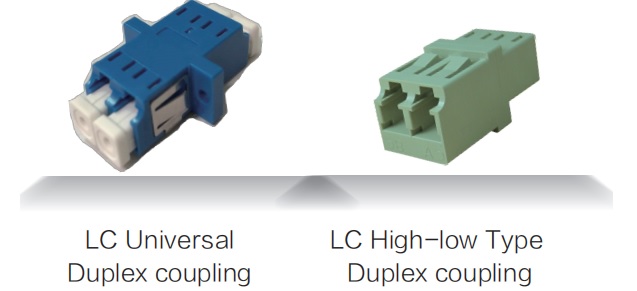

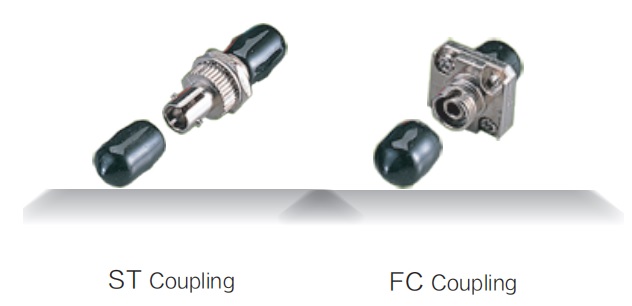

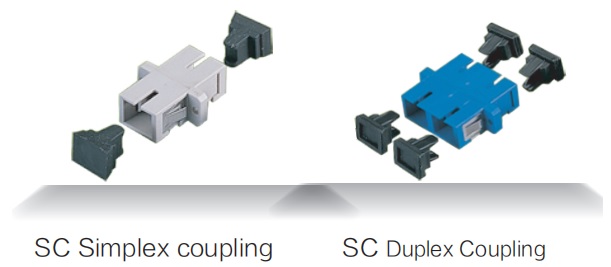

- ST, SC, FC, LC, MPO and other coupling connectors can be provided according to the needs of  equipment interfaces.

Product characteristics

Working temperature: -20 ℃ ~+75 ℃

Insertion loss: <0.1 dB (multimode) <0.2 dB (singlemode)

Repeatability: <0.1 dB (500 reconnects)

Tension resistance: >100 LBF

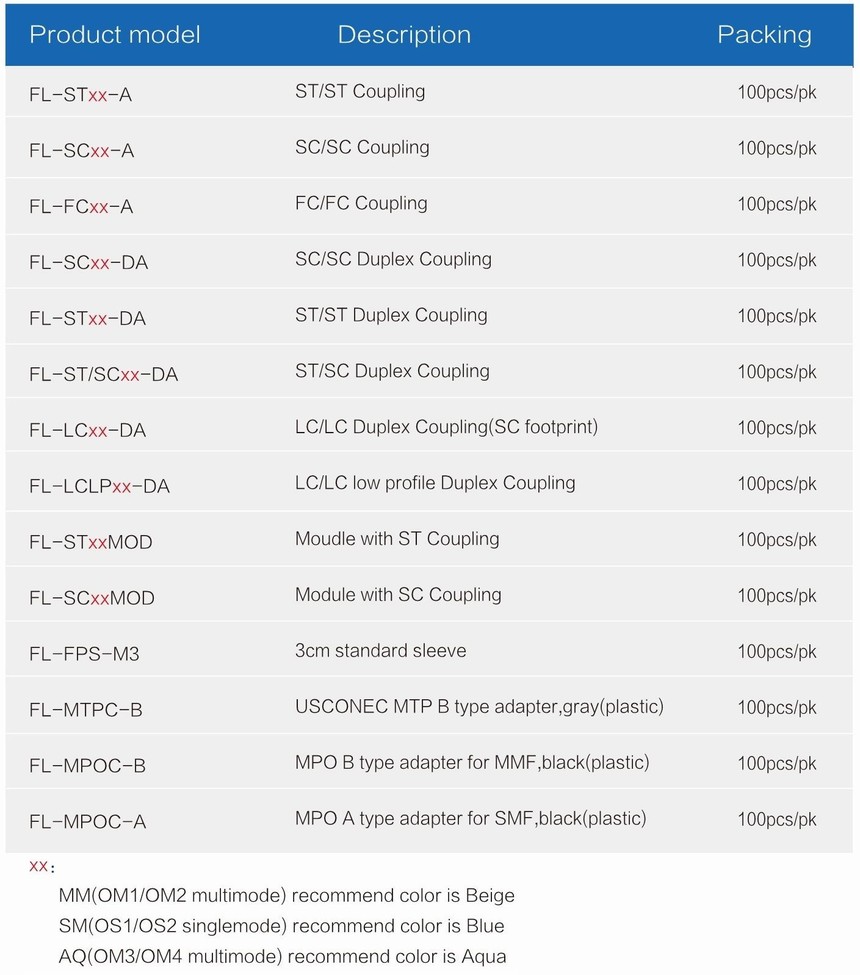

Order information

P3.03.03_Fiber coupling.pdf

P3.03.03_光纤耦合器.pdf
