Product advantage

-19 "rack type 1U design, conforming to ANSI / EIA-RS310-C / D standard.

-The bottom plate is made of SPCC cold-rolled steel plate and treated with baking paint and rust prevention.

-The 12 gear (13 claw) wire management ring buckle design exactly corresponds to the 24 port distribution

 frame (2 jumpers are placed in each gear), which can truly hoop the jumpers in the ring buckle of the wire

 management frame to avoid the jumpers from scattering outside the slot.

-Easy-patch series design provides good hand plugging space.

-The depth of the whole wire rack exceeds 90mm, which provides the storage of higher capacity jumpers and

 makes the bending radius of jumpers meet the installation requirements.

-The cable management ring buckle and front panel cover are made of ABS, and the panel cover can store the

 cable in the cover plate; Make the appearance neat and beautiful.

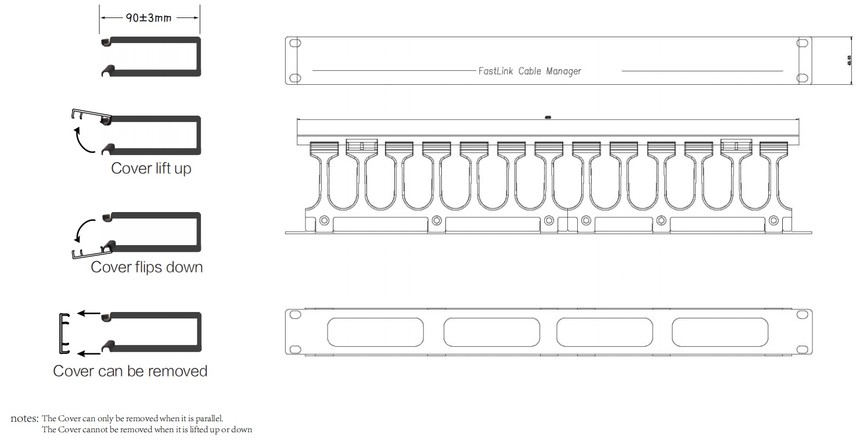

-The front panel cover can be lifted up, down or the whole panel cover can be removed.

-Comply with ROHS 2011 / 65 / EU environmental directive.

Product characteristics

ABS material

Standard color: Black

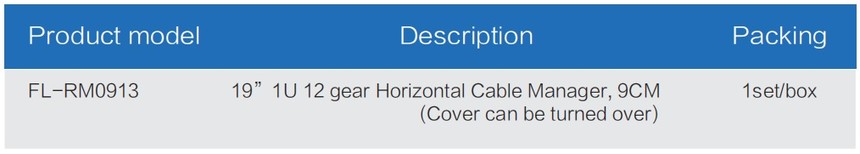

Order information

P2.10.03_9cm finger type horizontal Cable Manager.pdf

P2.10.03_9cm手指型水平理线架.pdf
