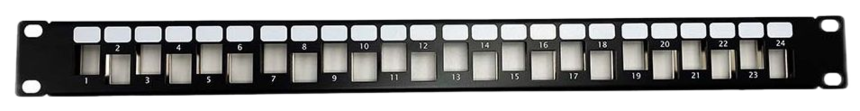

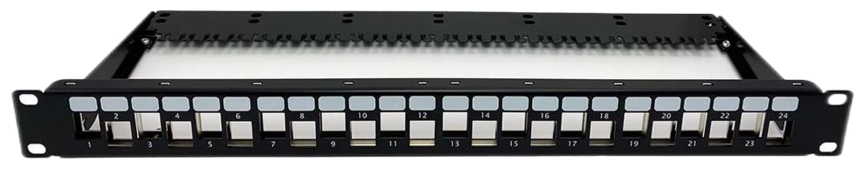

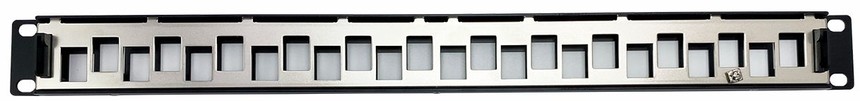

FL-24SPSB 24 port horizontal blank Staggered Patch Panel
Product advantage - The 24 port shielded snap in staggered horizontal hollow panel distribution frame is made of SPCC cold-rolled steel plate, and the surface is painted to prevent Rust treatment. - Compatible with fastlinkcabsys 90°and 180°shielded Keystone jack. - The panel adopts the up-down staggered design, which increases the distance between ports and effectively avoids the electromagnetic interference between cables. - The back of the horizontal hollow panel distribution frame is made of conductive metal, and the grounding wire joint lock is provided, which is compatible with the shielded module and unshielded module installation. - Each port can be disassembled / installed in single mode, making installation and maintenance easier. - Large steel seal marking block, with clearer text and clearer management. - The retractable rear bracket guides the incoming line and supports the total amount of cables, meeting the requirements of bending radius. - Suitable for data, image, sound and other transmission applications. - Comply with ROHS 2011/65/eu environmental specifications and standards. Product characteristics Frame and support metal material: SPCC Front panel metal material: SPCC Standard color: Black Operating temperature: -40 ℃ to +75 ℃ Meet the standards EIA-310-D

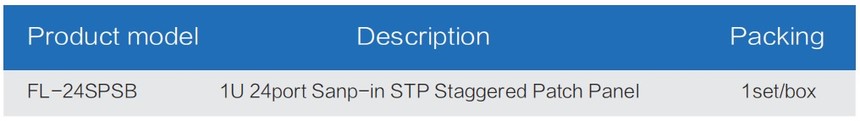

Order information
|
