FL-IP6K，FL-IPSMB IP dustproof and waterproof Solution for Industrial Ethernet

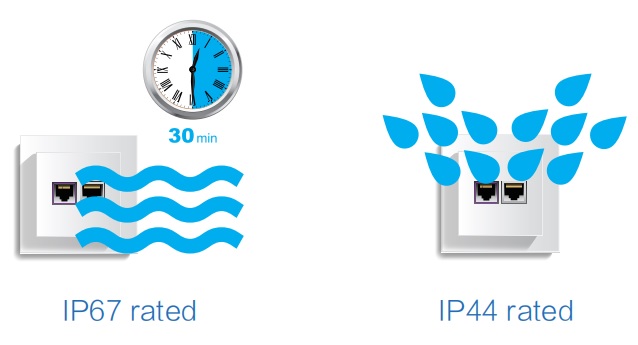

Product advantage - Fastlinkcabsys Industrial Ethernet wiring, with immersion protection up to IP67. - IP44 rated prevents flooding from all directions. - IP67 rated can be soaked in 1m water depth for 30 minutes without liquid immersion.

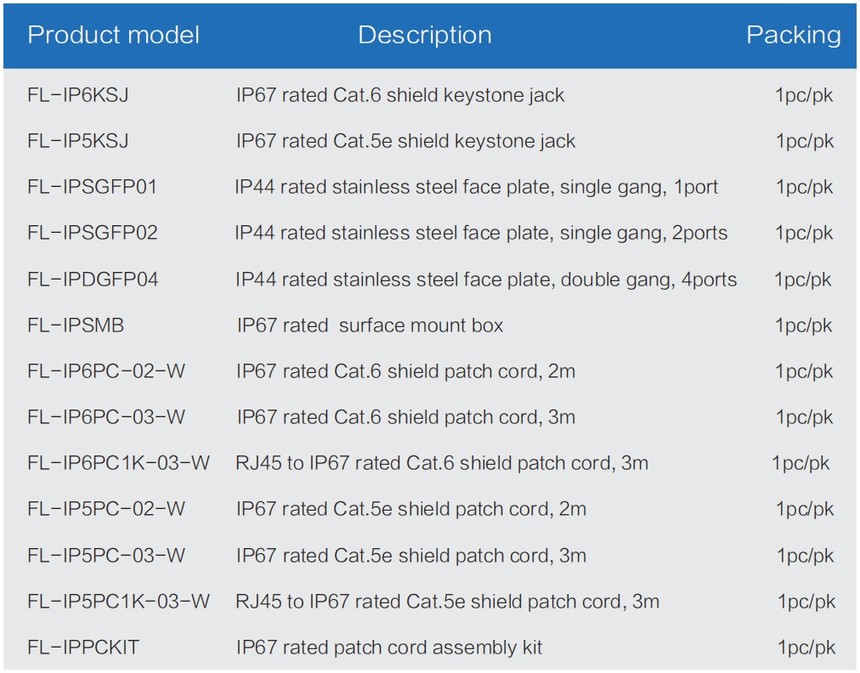

Physical characteristics Operating temperature range : -10 °C to 60 °C. Storage temperature range : -40 °C to 68 °C. Humidity : 10%~90%RH. Electrical characteristics Insulation resistance : 500 MΩ. Dielectric withstanding voltage : 1000 V AC. DC current rating : 1.5 Amps. DC resistance : 0.1Ω. Contact resistance : 20MΩ. Order information
|
