Product advantage

- Comply with TIA/EIA 568-B.2-1, ANSI/TIA 568.2-D Cat.6 and ISO/IEC 11801 2nd class E.

- Cat.6 multi strand copper stranded Patch Cord, cross isolation between pairs, transmission bandwidth up to 250MHz.

- Cat.6 shielded SF/UTP 26AWG stranded copper wire is adopted; two terminal crimping shielded standard RJ45 connector.

- The outer skin is made of standard fire-resistant material and can be PVC or LSOH low smoke halogen-free.

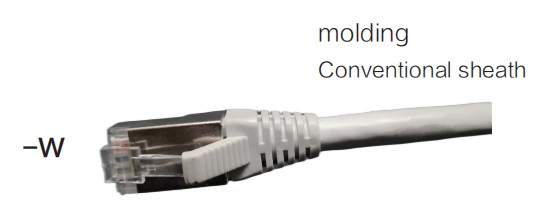

- It adopts rubber filled protective sleeve and has RJ45 shrapnel protection design.

- It can provide jumpers of eight colors, meeting TIA-606 color management standard.

- Comply with ROHS 2011/65/EU environmental protection standards.

Product characteristics

RJ45 connector conforms to UL/CSA FCC part 68, sub part F

Cable insulation material conforms to UL-94V-0

Contact plating: 50μ Gold Plated /100μ plate with nickel

Interface plugging times: >1000

Plug and pull resistance: minimum 11lbf (50N) between plug and interface

Maximum DC resistance: <9.38Ω /100m at 20 ℃

Mutual capacitance: <5.6nf/100m

Applicable temperature: -20℃ to +75℃

Insulation strength (conductor): 1000VAC, 60hz/1min

Insulation impedance: >500M ohms (500VDC)

Contact impedance: <35M ohm

Rated voltage / current: 150VAC/1.5Ampere

Inner conductor gauge: 26AWG stranded

Cable sheath material: PVC or LSOH in accordance with IEC 60332-1-2

Meet the standards

TIA/EIA 568-B.2

ANSI/TIA 568.2-D

ISO/IEC 11801 2nd Edition

EN 50173 2nd Edition

EN 55022 Class B

Can be used

10/100Base-TX

1000Base-T

2.5G/5GBase-T

155/622 Mbps ATM

TP-PMD(ANSI X3T9.5 100Mbps)

4/16Mbps Token Ring

ISDN

VoIP

PoE+ compliant

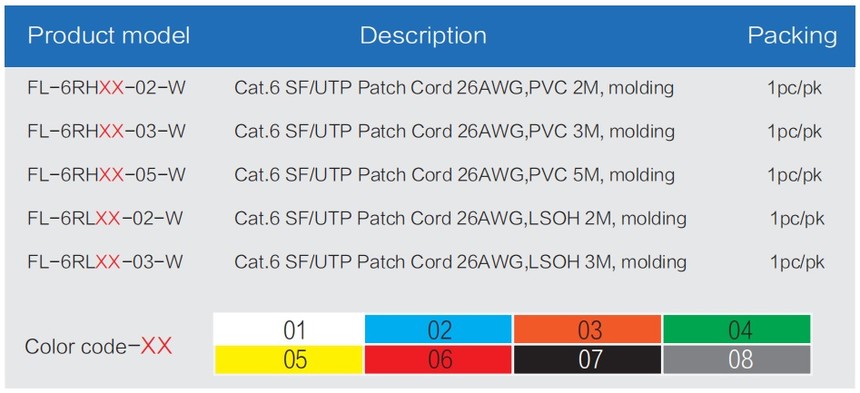

Order information

Cat.6 Shielded Patch Cord,SF-UTP,26AWG.pdf
