Fiber Patch Cord and Pigtail

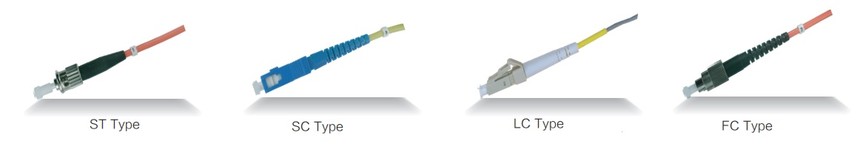

Product advantage - Comply with ANSI/TIA 568.3-D, TIA/EIA 568-B.3, ISO/IEC 11801 2nd amendment standards. - Provide Basecap (62.5/125μm )、HiCap(50/125μm)、MaxCap 300（50/125μm OM3)、 MaxCap 550 (50/125μM OM4) and teracap (9/125μm )、TeraSafe（9/125μm ITU-T G.657-A)、TeraSafe Plus(9/125μM ITU-T G.657-B) and other products. - Precision ceramic plating zirconia ferrale design, convex lens grinding polishing, low loss, suitable for LAN/WAN and CATV/CCTV applications. - Support 10/100Base F, 1000Base SX/LX, FDDI, ATM, FTTx and other network applications. - ST, SC, FC, LC and other connectors can be provided according to the needs of equipment interfaces. - Provide digital identification ring or color sheath to distinguish between receiving end and sending end. - Operating temperature range: -20 ℃ ~+70 ℃. - Comply with ROHS 2011/65/EU environmental protection standards. Meet the standards TIA/EIA 568-B.3 ANSI/TIA 568.3-D ISO/IEC 11801 2nd Edition IEC 874-10

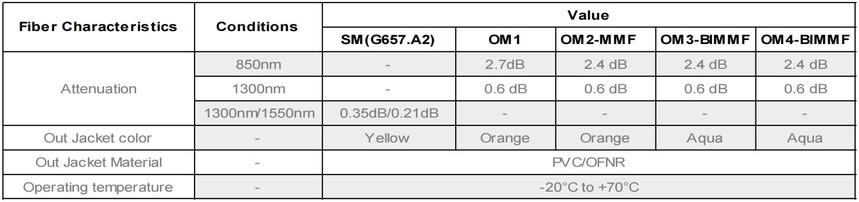

Optical characteristics
OS2 Fiber Standard Compliance： ITU-T G.657.A2 ；ANSI/TIA 492 CAAC & IEC 60793-2-50 class B-652.D (formerB1.3)/B-657.A2 (formerB6_a2)； OM2 Fiber Standard Compliance：ANSI/TIA 492AAAF A1-OM2 (former 492AAAB) & IEC 60793-2-10 category A1-OM2b (former A1a.1b)； OM3 Fiber Standard Compliance：ANSI/TIA 492AAAF A1-OM3 (former 492AAAC-A) & IEC 60793-2-10 category A1-OM3b (former A1a.2b)； OM4 Fiber Standard Compliance：ANSI/TIA 492AAAF A1-OM4 (former 492AAAD) & IEC 60793-2-10 category A1-OM4b (former A1a.3b)； OM5 Fiber Standard Compliance：ANSI/TIA 492AAAF A1-OM5 (former 492AAAE) & IEC 60793-2-10 category A1-OM5b (former A1a.4b)。
|
