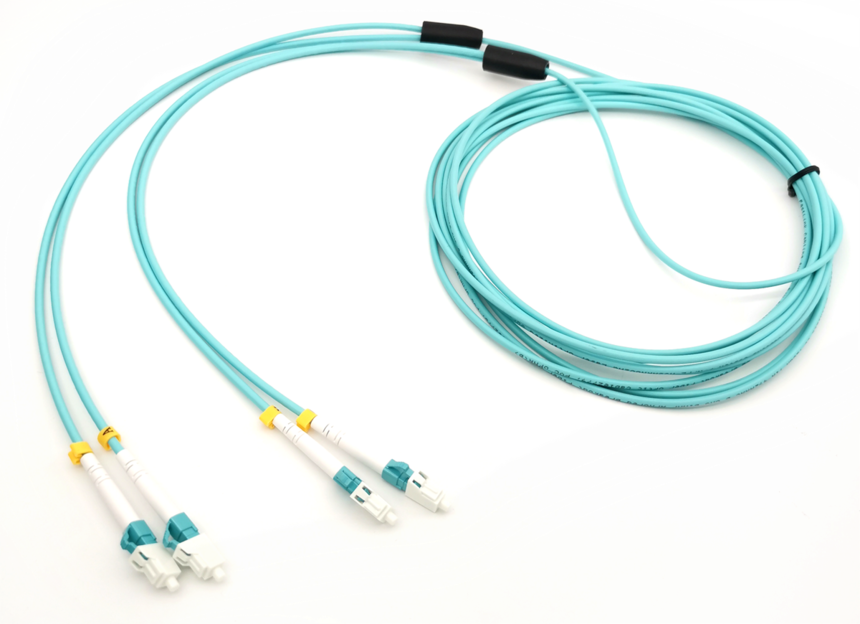

Armored optical fiber patch cord
*. The two ends of armored optical fiber Patch Cord are two simplex LC Connecter by default. (marked with AB, convenient for field polarity conversion)

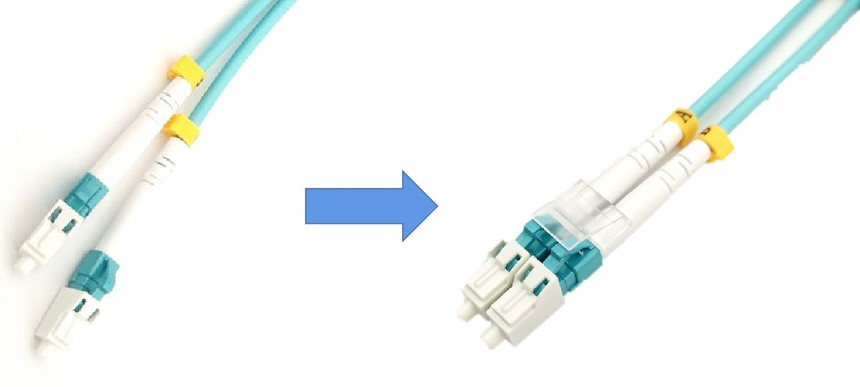

Simplex to Duplex
*. If duplex LC-LC is required, it should be noted that the finished product can be added with transparent buckle before leaving the factory. Product advantage - Comply with ANSI/TIA 568.3-D, TIA/EIA 568-B.3, ISO/IEC 11801 2nd amendment standards. - Provide Maxcap safe 300 (50/125μM bending resistant BIOM3), Maxcap safe 550 (50/125μM bending resistant BIOM4) and Terasafe plus (9/125μm OS2、ITU-T G.652D、G.657. A2) and other series products. - Precision ceramic plating zirconia ferrale design, convex lens grinding polishing, low loss, suitable for LAN/WAN and CATV/CCTV applications. - Support 1G/10GBase SX/SR, 10G/40G/100GBase LR/ER, ATM, FTTx and other network applications. ST, SC, FC, LC and MTRJ connectors can be provided according to the needs of equipment interfaces. - A digital identification ring is provided to distinguish the receiving end from the sending end. - Operating temperature range: -20 ℃ ~+70 ℃. - Comply with RoHS 2011/65/EU environmental protection standards.

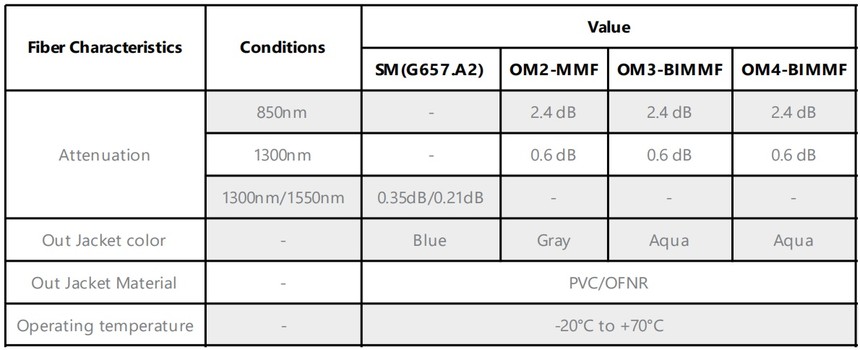

Meet the standards TIA/EIA 568-B.3 ANSI/TIA 568.3-D ISO/IEC 11801 2nd Edition IEC 874-10 Optical characteristics
|
