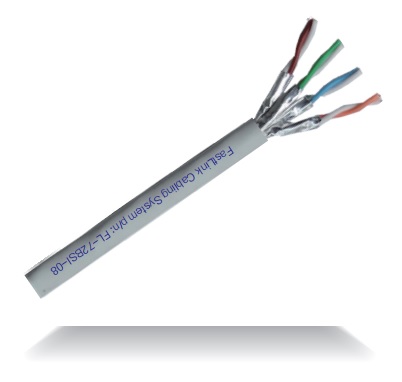

FL-71BSI, FL-72BSI Cat.7 Shielded Twisted Pair Cable, S/FTP, 23AWG

01.jpg        02.jpg


Product advantage

- It adopts advanced twisting process, conforms to iso/iec 11801 2nd Class F characteristic standard and passes ETL monomer test.

- The outer layer of each pair of four pairs of cables is covered with aluminum foil Mylar tape; Four pairs of assembly lines are designed with copper-clad braided structure, which can effectively reduce the crosstalk and external crosstalk between pairs; Its transmission bandwidth reaches 600MHz.

- Compatible with FastLinkcabsys full series copper cable connectors.

- The standard outer coating material is PVC or LSZH low smoke halogen-free type.

- Comply with ROHS 2011/65/eu environmental protection standards.


Product characteristics

Non plenum fire rating: 60332-1 flame rated PVC or LSZH

Bare copper wire,  23AWG

Insulation material: Foam PE

Twisting mode: 4 pairs of cabling, 2-core pair twisting

The first shielding layer: each pair of aluminum foil Mylar tape

Second shielding layer: 4 pairs of tinned copper mesh braided layer

Skin material: PVC or LSZH

Cable outer diameter: 7.1 ± 0.3 mm

Rated transmission speed (NVP): 74%

Operating temperature: -20 ℃ to +75 ℃


Meet the standards

ISO/IEC 11801(IEC 61156-5) Classs F

EN55022 Class B

IEC 60332-1-2

IEC 60754-2、IEC 61034-1、IEC 61034-2


Can be used

10/100Base-T

1G/2.5G/5GBase-T

10GBase-T(10Gigabit Ethernet)

1.2/2.4 Gbps ATM

TP-PMD(ANSI X3T9.5 100Mbps)

4/16Mbps Token Ring

ISDN

PoE++(Type 4) compliant


Order information

Order information.jpg


Transmission performance (Typical value@ 20℃)

Transmission performance.jpg


02a 七类线结构.jpg


P2.04.02_Cat.7 Shielded Twisted Pair Cable,S-FTP,23AWG.pdf


P2.04.02Z_七类双层屏蔽双绞线 S-FTP,23AWG.pdf
