2022-07-08

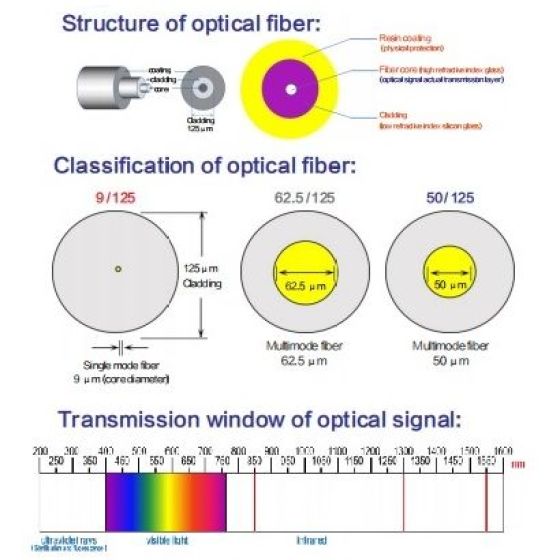

Structure of optical fiber:Optical fibers are generally divided into three layers:The first layer of fiber core: the center is a glass core with high refractive index, which is used to transmit optical signals;The second layer of cladding: the middle is a silicon glass cladding with low refractive index, which forms total reflection conditions with the fiber core;The third layer of coating: the outermost layer is the resin coating for reinforcement. The main component of bare optical fiber is si
2022-07-08

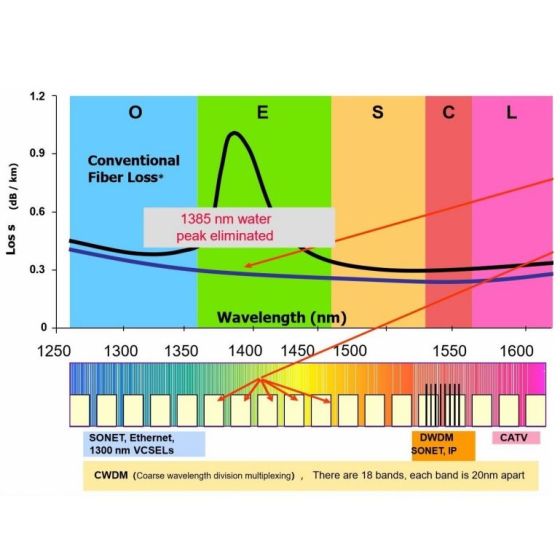

Due to the existence of hydroxyl ions in optical fibers, usually only a few wavelength windows can be used for optical signal transmission, such as traditional single-mode optical fibers, because there is a very serious water peak at the E-band of 1400nm, under normal circumstances. It is impossible to carry out optical signal transmission, but with the maturity of processing technology, by adding a small amount of rare elements in the fiber drawing process, the water peak at 1400nm is limited,
2022-07-08

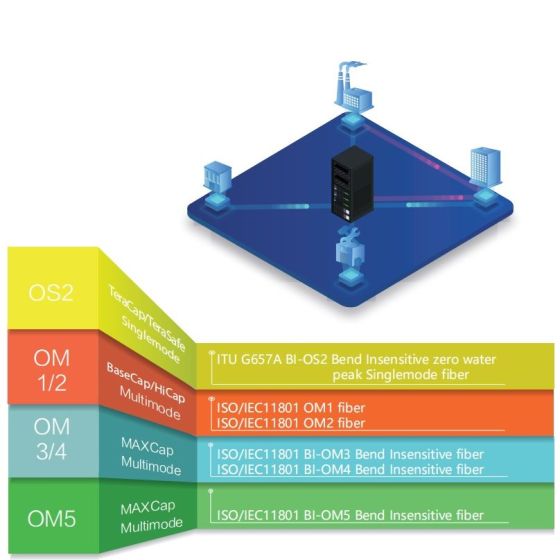

Product overviewFastlinkcabsys Optical Fiber cabling system is an enhanced optical network cabling solution. The optical Fiber meets the physical protection in different environments, and provides excellent optical performance, which is in line with the current application of optical network bandwidth. This set of products also has flexibility, stability, capacity expansion and system integration flexibility, and can face the development of ultra-high speed network technology in the future.P3.01
2022-07-08

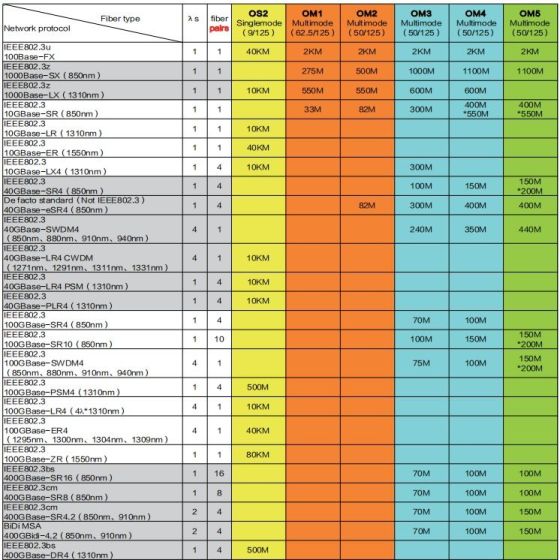

* Non IEEE standard length, only suitable for use under restrictive conditions.P3.01.04_Applicable distance of optical fiber.pdfP3.01.04_光纤适用距离.pdf
